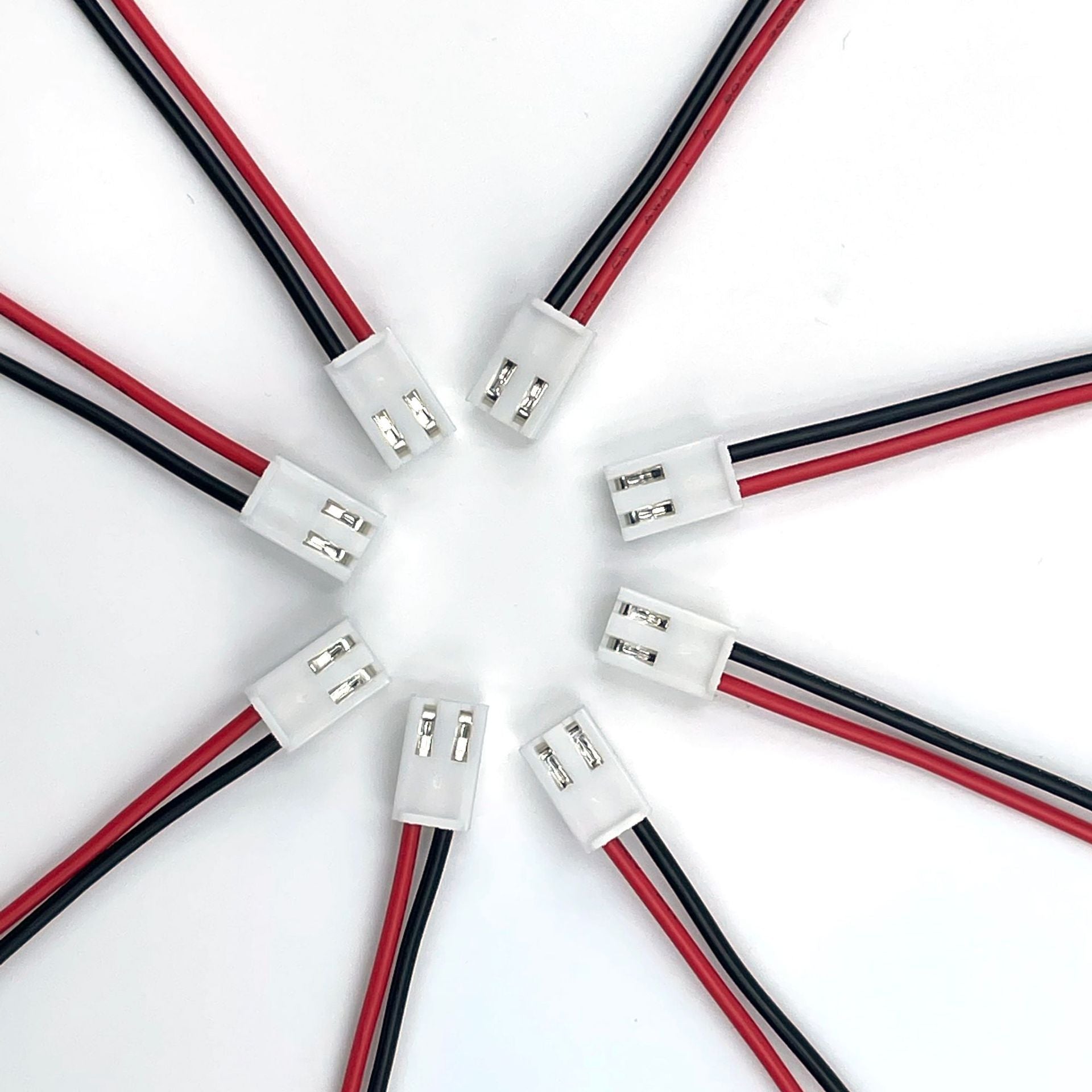

Jst Vhr-2n 3.96mm Pitch Small Field Proven Connector Copper Scrap Wire for Printed Circuit Board

Expert manufacturer of custom JST VHR-2N wire harnesses. We specialize in reliable, compact 3.96mm pitch cable assemblies for high-vibration applications in automotive, industrial & appliance sectors.

We are a specialized manufacturer of custom wire harnesses and cable assemblies  We transform these high-quality connectors into complete, robust, and ready-to-install wiring solutions, engineered to meet the rigorous demands of automotive, industrial, and appliance markets.

Our Wire Harness Manufacturing Expertise

We provide comprehensive manufacturing services to deliver a flawless final product:

Precision Terminal Crimping: Utilizing state-of-the-art automated crimping machines to ensure perfect, gas-tight connections for every terminal, guaranteeing optimal electrical performance and long-term reliability.

Custom Wire Configuration: We supply and cut wires to your exact specifications—length, gauge (AWG), stranding, and jacket color—ensuring perfect integration into your assembly.

Expert Housing Assembly: Our technicians are experts in assembling the VHR-2N housing with its distinct Secondary Lock (SLR) and CPA (Connector Position Assurance) lever, ensuring a secure and mistake-proof connection.

Rigorous Quality Control: Every harness undergoes 100% electrical continuity testing and mechanical inspection to verify locking mechanism function and terminal retention.

Key Features of the JST VHR-2N System in Our Harnesses:

Compact 3.96mm Pitch: Saves valuable space compared to larger standard headers, enabling more compact product designs.

High-Reliability Locking System: Features a Primary Lock, a Secondary Lock (SLR) for terminal retention, and an optional CPA device to prevent accidental unmating, making it exceptionally resistant to vibration.

High Current Rating: Capable of handling up to 10.0 A per circuit, providing robust power delivery in a small form factor.

Sealed and Unsealed Options: Available in standard or IP67-rated sealed versions for environmental protection.

Automotive-Grade Quality: Designed to meet the stringent requirements of the automotive industry and other harsh operating environments.

Applications for Our Custom VHR-2N Harnesses:

Our harnesses are engineered for reliability in critical applications:

Automotive Systems: Body control modules, sensors, lighting, door locks, and in-vehicle infotainment.

Home Appliances: Washing machines, dryers, dishwashers, and other white goods subject to constant vibration.

Industrial Controls: PLCs, motor drives, sensor arrays, and factory automation equipment.

Business Machines: Printers, copiers, and vending machines.

Our Customization Options:

Circuit Count: Customized to your needs based on VHR-2N availability (e.g., 2 to 15 circuits).

Wire Specifications: Exact length, AWG gauge (e.g., 20-24 AWG), stranding, and jacket color/material.

Connector Options: Provide plug and receptacle housings, with or without seals.

Secondary Locks: Include SLR and CPA components as required.

Additional Features: Shielding, over-molding, strain relief, or integration into a larger, multi-branch harness.

Why Choose Us as Your JST VHR-2N Manufacturer?

Deep Technical Knowledge: We understand the nuances of the VHR-2N system and its application challenges.

Proven Quality: We use genuine JST components and adhere to strict IATF 16949 / ISO 9001 quality standards.

End-to-End Service: From design support and prototyping to high-volume production.

Competitive & Efficient: We optimize designs for manufacturability, reducing your total cost and time to market.

Request a Custom Quote:

Contact our engineering team today with your specifications for a rapid and competitive quotation.
