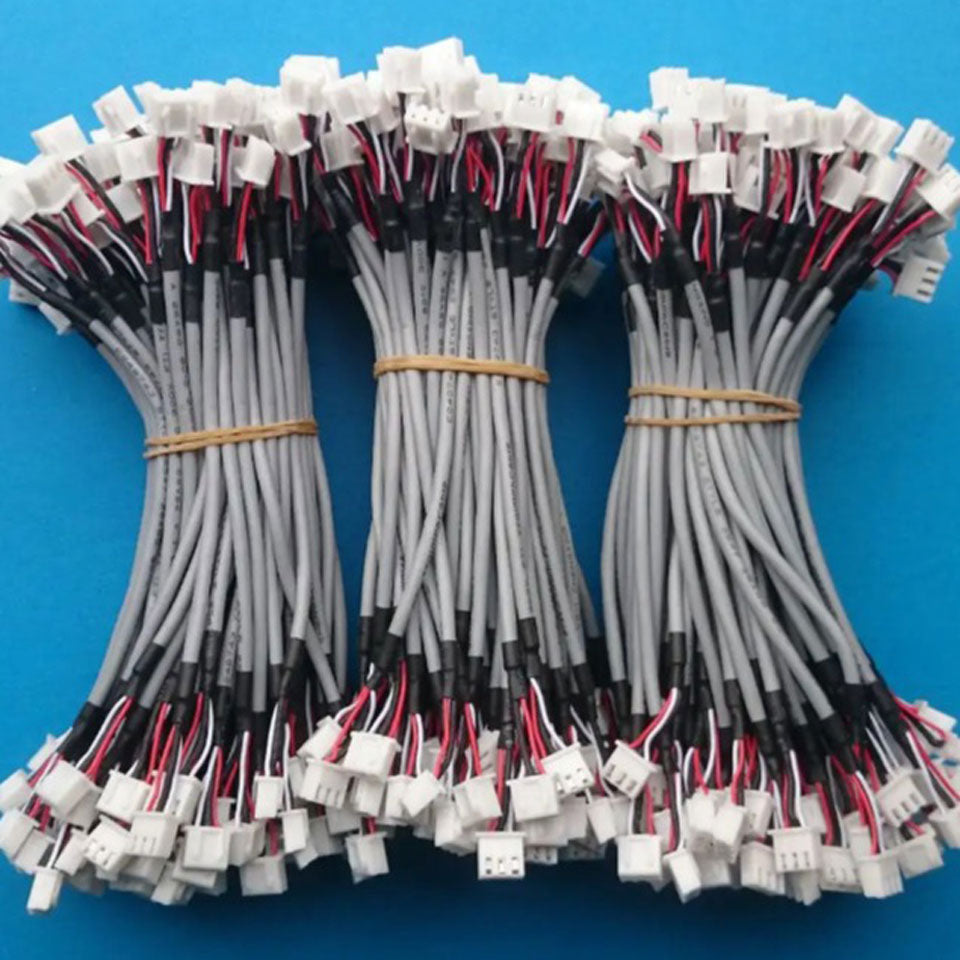

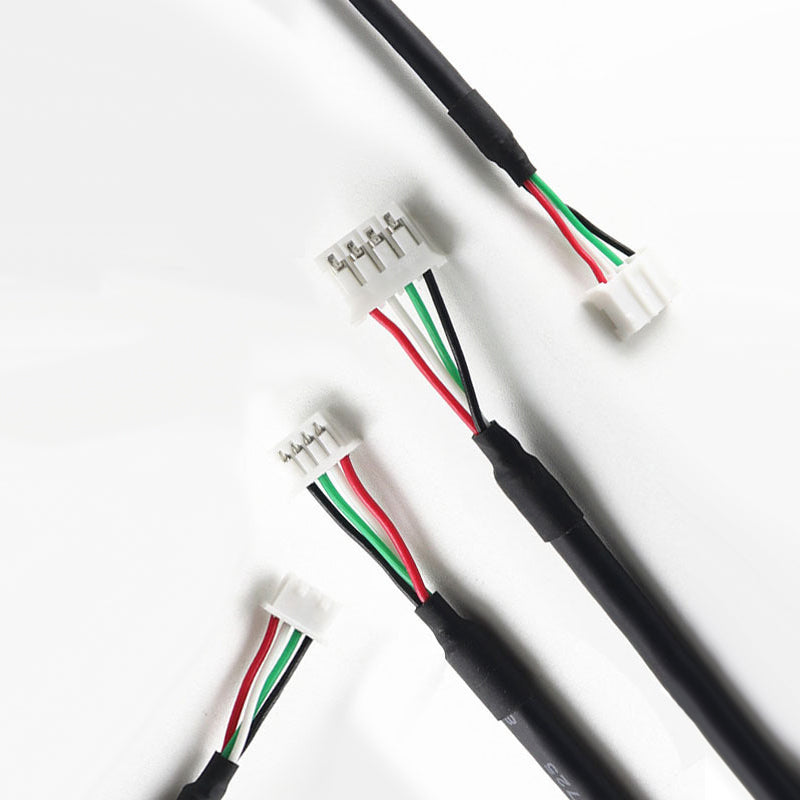

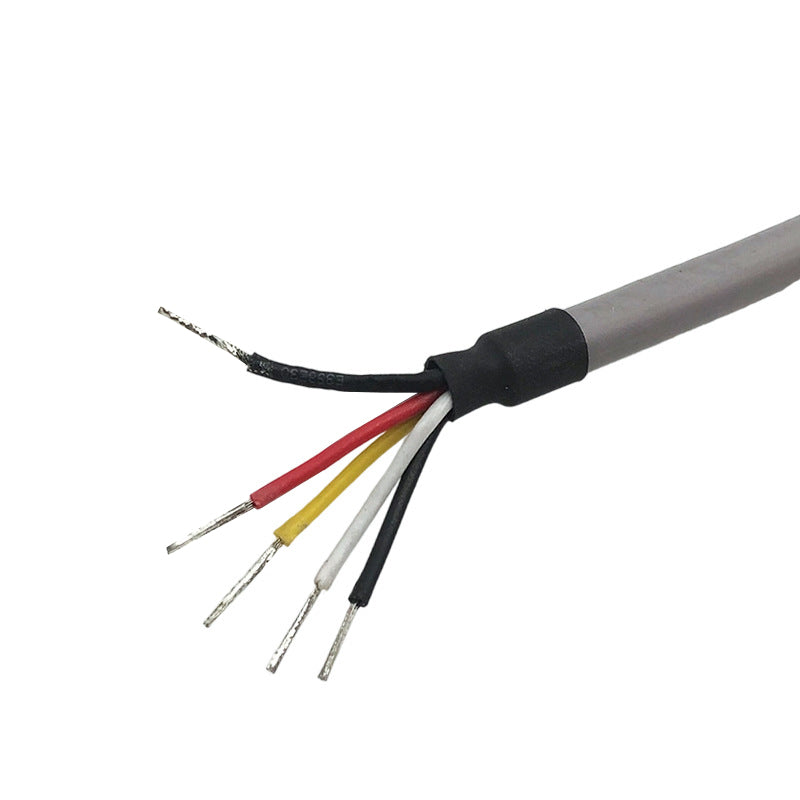

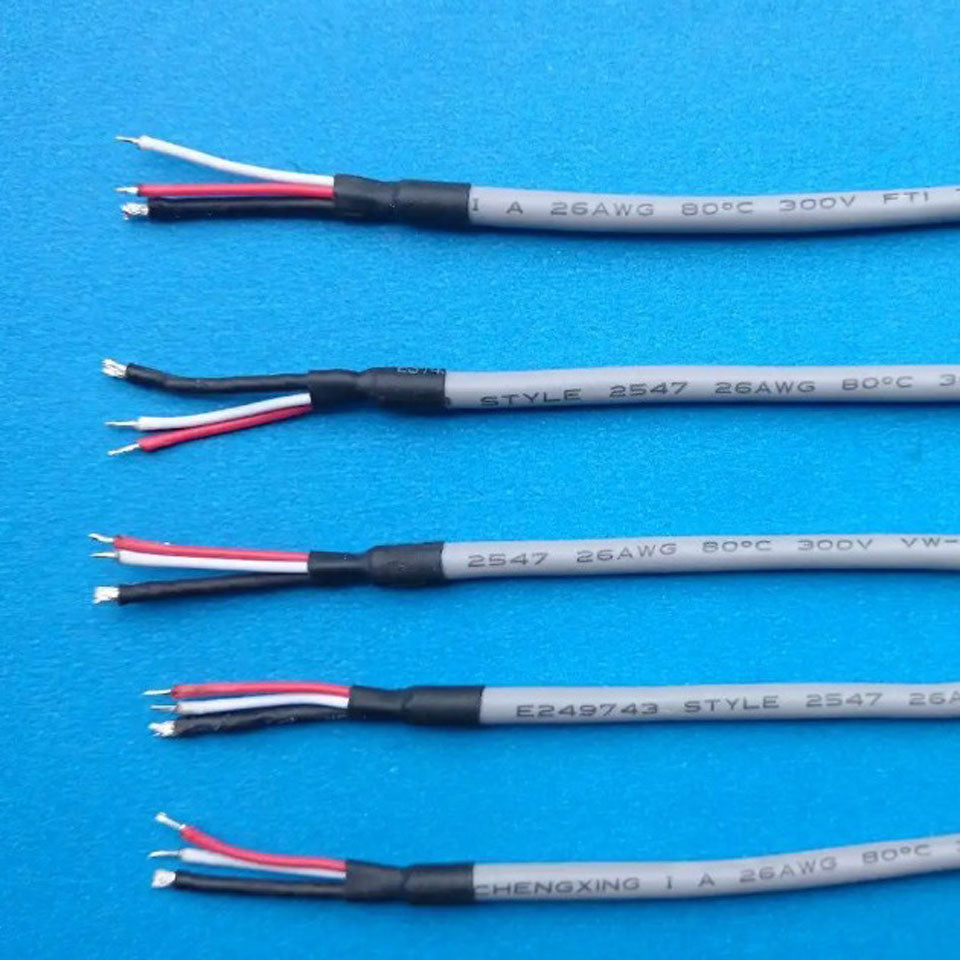

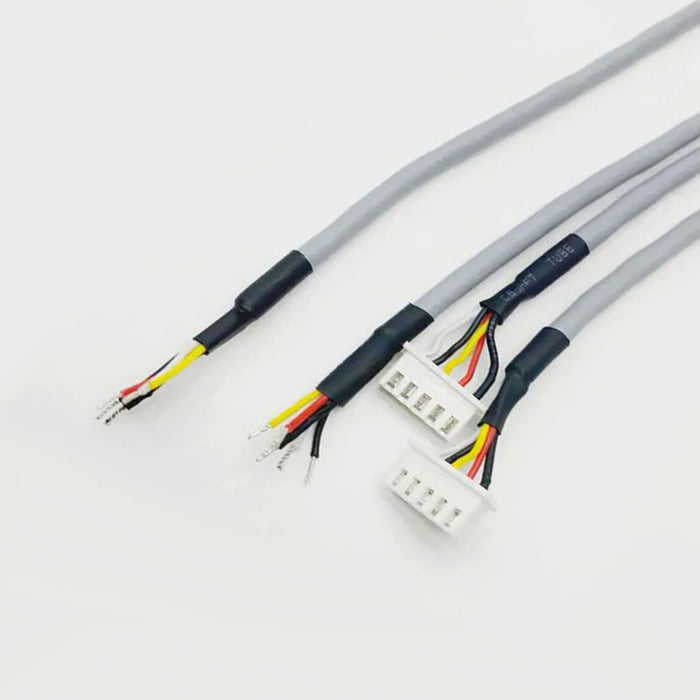

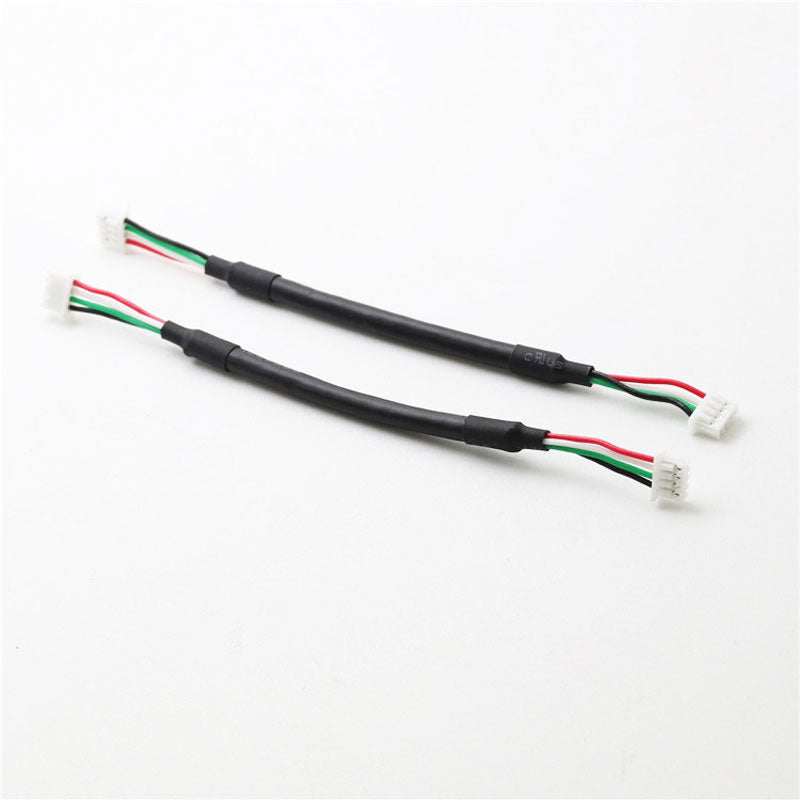

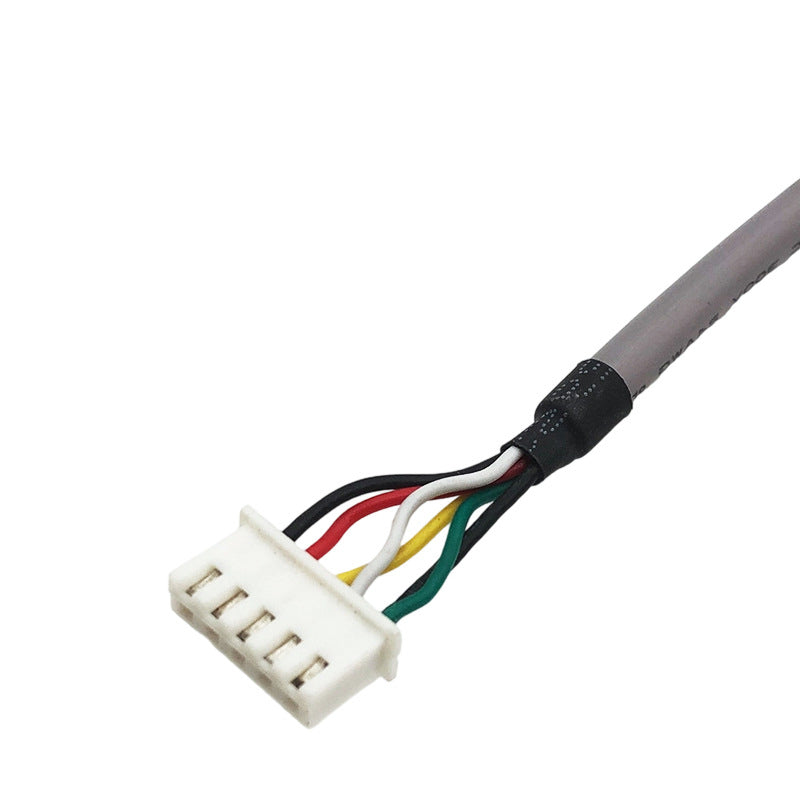

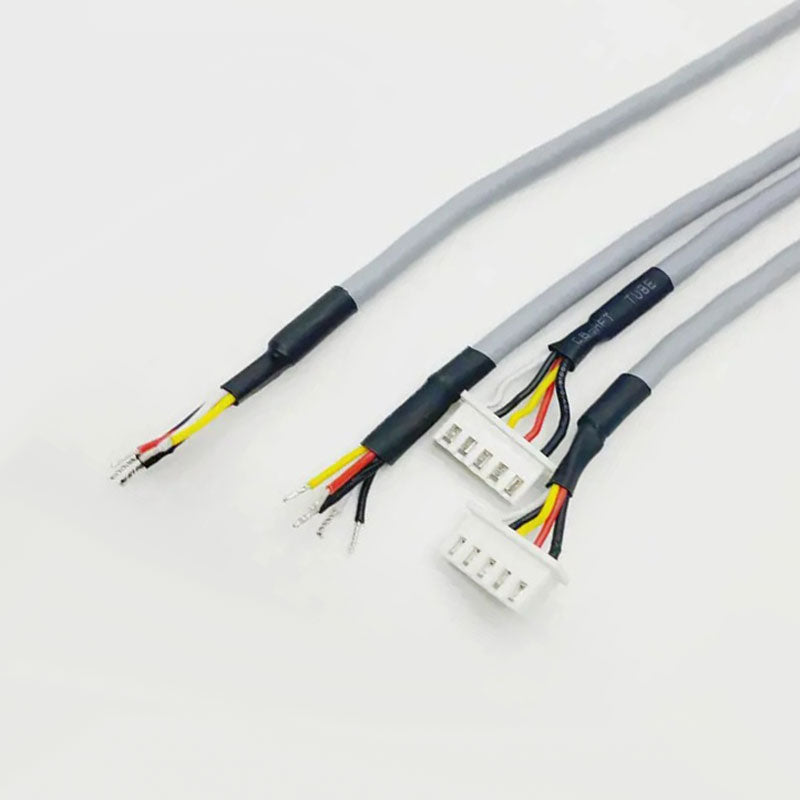

Streamline your power and signal delivery with our custom-engineered, multi-core terminal wire assemblies. This high-performance cable is based on the UL2464 standard, featuring a 24 AWG gauge, multiple conductors, and an overall shield, all pre-terminated with your specified terminals and protective sleeves. We deliver a complete, robust, and ready-to-install wiring solution that saves you time, reduces assembly errors, and ensures consistent performance in demanding applications.

Key Features & Benefits:

• Custom Engineered to Spec: We tailor every aspect to your needs—conductor count, color coding, terminal types, sleeve material, and cable length.

• UL2464 Certified Cable: Guarantees compliance with safety standards for PVC-insulated multi-core hook-up wire, ensuring quality and reliability.

• 24 AWG Conductors: Ideal for low-current power and signal circuits, offering an excellent balance of current capacity and flexibility.

• Multi-Core Design: Integrates multiple independent circuits into a single, organized cable, simplifying harness routing and reducing clutter.

• Overall Shielding (Foil/Braid): Provides superior protection against Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), ensuring signal integrity.

• Pre-Fitted Terminals: Arrives ready-to-use with crimped terminals (e.g., fork, ring, bullet, or PCB pins) for secure electrical connections.

• Terminal Sleeves/Insulators: Includes insulating sleeves or double-wall heat-shrink tubes for strain relief and protection against short circuits.

• Durable & Flexible PVC Jacket: Offers excellent abrasion resistance, moisture protection, and flexibility for easy installation in tight spaces.

Applications:

• Industrial Automation: CNC machinery, robotic arms, control panels.

• Consumer Electronics: Internal wiring for appliances, power supplies, and audio/video equipment.

• Telecommunications & Data: Network switches, server cabinets, base stations.

• Automotive Electronics: (Aftermarket/Non-critical) In-vehicle infotainment, sensor wiring.

• Medical Device Interconnects: (Where applicable per specific regulations)

Technical Specifications:

• Standard: UL 2464 (Style: AWM)

• Conductor: Stranded Bare Copper, 24 AWG

• Insulation: PVC

• Shielding: Aluminum/Polyester Foil or Tinned Copper Braid

• Jacket: PVC

• Temperature Rating: -20°C to 80°C (or 105°C depending on PVC grade)

• Rated Voltage: 300 V

• Terminals: Custom (e.g., UL/CSA recognized)

• Sleeves: PVC Insulation Boots or Adhesive-lined Heat-Shrink Tubing

Customization Options:

• Number of Cores (e.g., 2 to 12 cores)

• Conductor Color Coding

• Terminal Type and Plating (Tin, Gold)

• Sleeve Type, Color, and Length

• Cable Length and Jacket Color

• Shielding Type and Coverage

Ordering Information:

Contact our sales team with your specifications for a rapid quote. Please provide details on conductor count, desired terminals, sleeve requirements, and approximate quantity.
