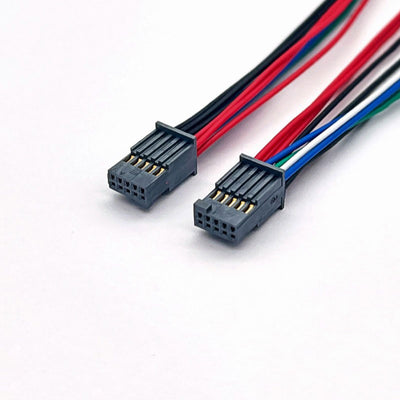

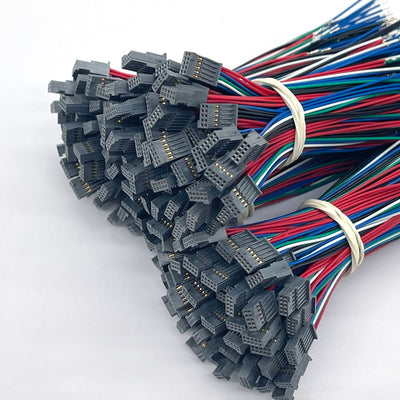

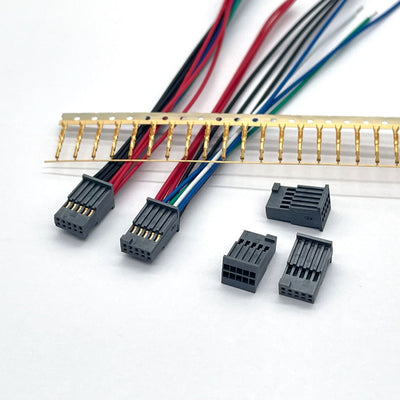

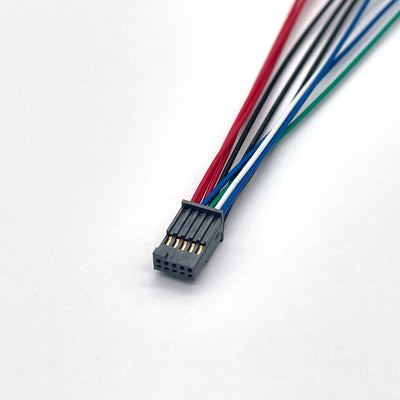

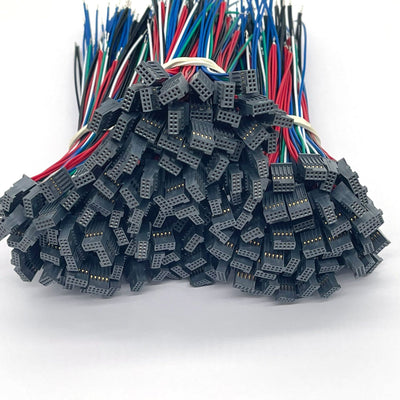

ISDF-05-D Tiger Eye™ Discrete Wire 1.27mm Pitch Socket Housing Wire Harness for Electronic Equipment

The ISDF-05-D is a factory-assembled, circular wire harness engineered to deliver exceptional performance in the most challenging conditions. This part number specifies a complete, ready-to-deploy assembly featuring a 5-position connector that is typically IP67 rated, ensuring complete protection against dust ingress and water immersion. It is designed for applications where reliability under exposure to moisture, vibration, and extreme temperatures is paramount.

Key Features & Benefits:

Robust Sealing (IP67): Provides a complete seal against environmental factors, making it suitable for use outdoors, in wash-down areas, or in any application where moisture and dust are a concern.

Secure Locking Mechanism: Features a robust bayonet or screw-type coupling system that ensures a vibration-proof connection, preventing accidental disconnection even in high-shock environments.

Shielded Design: The connector and cable are often fully shielded, providing excellent protection against Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), which is critical for signal integrity.

5-Position Configuration: This 5-pin setup is versatile, capable of handling multiple power circuits, sensor signals, or a combination of both within a single, robust connection.

Durable Construction: The housing is typically constructed from high-strength, corrosion-resistant metal (such as zinc alloy) or engineering plastics, with high-quality silicone or rubber seals.

Pre-Assembled Reliability: Arrives as a fully-tested unit, eliminating the variability and potential errors of field assembly and ensuring immediate, reliable operation.

Applications:

This sealed and shielded harness is critical in applications demanding unwavering reliability:

Automotive & Transportation: Sensor connections, lighting, and control units in vehicles, agricultural machinery, and heavy trucks.

Marine Electronics: Connections for navigation equipment, sensors, and control systems on boats and ships.

Industrial Automation: Factory robotics, process control sensors, and equipment in harsh manufacturing environments.

Outdoor Equipment: Wiring for industrial lighting, security cameras, and communication devices.

Technical Specifications:

Manufacturer Part Number: ISDF-05-D

Connector Type: 5-Position, Sealed Circular Connector

Coupling Mechanism: Bayonet or Screw Lock

Sealing Rating: IP67 (Typical)

Shielding: Yes (Full metal shell or with shield braid)

Number of Positions: 5

Wire Gauge: Varies by specification (e.g., 20-24 AWG)

Temperature Range: -40°C to +105°C (or higher)

Housing Material: Metal Alloy or High-Strength PBT

Compatible Mating Part:

This harness is designed to mate with its specific panel-mount or cable-mount counterpart (e.g., a receptacle with a part number like ISDM-05-D).

Ordering Information:

The ISDF-05-D is a standard, off-the-shelf pre-assembled harness. Confirm mating interface and electrical specifications for your application.
