In the world of electronics and electrical engineering, off-the-shelf cables can only get you so far. When your project has unique space constraints, specific performance requirements, or demanding environmental conditions, a one-size-fits-all solution often falls short. This is where the power of custom terminal wires comes into play.
More than just simple connectors, custom terminal wires are tailored solutions that form the critical nervous system of your product, ensuring reliable power and signal transmission from point A to point B.
What Are Custom Terminal Wires?

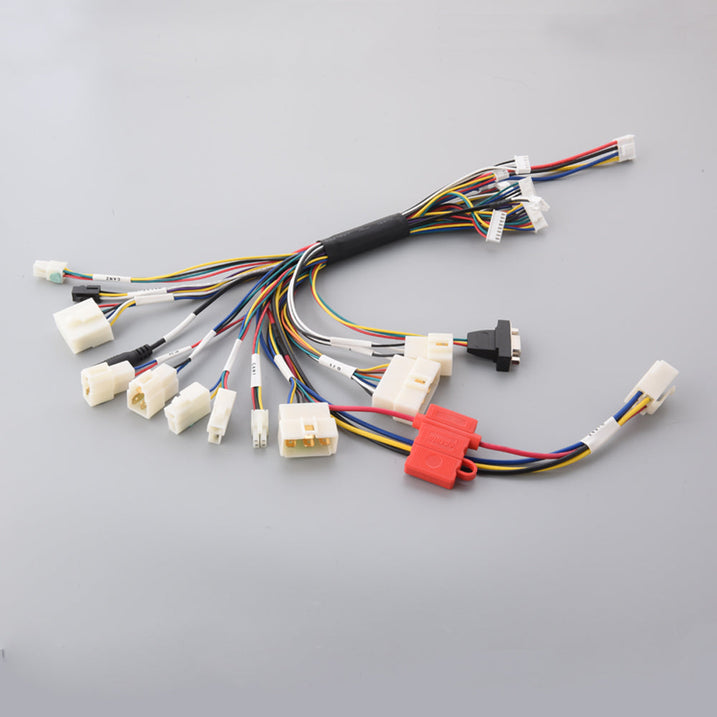

A custom terminal wire assembly is a cable that is engineered and built to your exact specifications. It typically consists of three main components:
The Wire: The cable itself, customized for gauge (AWG), strand count, length, and jacket material (e.g., PVC, TPE, Silicone).
The Terminals: The metal contacts at the end of the wires (e.g., spade, ring, hook, bullet, or pin terminals).
The Connector Housings: The plastic or nylon shells that hold the terminals in place, providing insulation, polarization, and a secure connection.
By customizing these elements, you create a perfect-fit solution for your application.
Key Benefits of Going Custom
Why should you consider custom terminal wires over standard options? The advantages are clear:
Perfect Fit and Form Factor: Eliminate the hassle of dealing with excess cable length or bulky connectors that don't fit your enclosure. A custom solution is designed for your specific layout, optimizing space and improving the overall aesthetics of your assembly.
Enhanced Performance and Reliability: Specify the exact wire gauge, shielding, and jacket material to handle the required current, voltage, and environmental stressors like temperature, moisture, abrasion, or chemicals. This results in superior performance and a longer lifespan.
Simplified Assembly and Error-Proofing: Pre-assembled harnesses with color-coded wires and keyed connectors drastically reduce assembly time on your production line. They also minimize the risk of human error during installation.
Cost Efficiency at Scale: While the initial unit cost may be higher than a generic cable, custom wires can lead to significant long-term savings by reducing labor, minimizing rework, and preventing field failures.
Streamlined Sourcing: Consolidate your supply chain. Instead of sourcing wires, terminals, and connectors from multiple vendors, you get a single, ready-to-install unit from one trusted partner.
Applications Across Industries
Custom terminal wires are the unsung heroes in a vast range of industries:
Automotive: In-vehicle infotainment systems, sensors, lighting, and engine control units (ECUs).
Appliances: Internal wiring for refrigerators, washing machines, and smart home devices.
Industrial Automation: Control panels, motor connections, robotics, and CNC machinery.
Medical Devices: Patient monitors, diagnostic equipment, and portable medical devices where reliability is critical.
Consumer Electronics: Drones, gaming consoles, and audio equipment.
What to Specify When Ordering Custom Terminal Wires
To ensure you get the perfect harness, provide your manufacturer with clear specifications:
Wire Specifications: Conductor size (AWG), strand count, insulation material, color, and length.
Terminal Type: Spade, ring, hook, bullet, pin, etc., including the exact dimensions.
Connector Type: The specific model or a detailed drawing of the housing.
Application Environment: Temperature range, exposure to oils/chemicals, flexing requirements, and IP rating if needed.
Regulatory Compliance: Any necessary certifications (e.g., UL, CE, RoHS).
Packaging: Preferred packaging for delivery (e.g., reels, bags, individual boxes).
Partner with the Right Manufacturer
Choosing the right partner is crucial. Look for a manufacturer with a proven track record, strong engineering support, and a commitment to quality control. They should work with you from the prototyping phase to mass production, ensuring your custom terminal wires are delivered on time and to the highest standards.
Ready to optimize your next project? Don't let a standard cable limit your design. Embrace the flexibility, reliability, and efficiency of a custom terminal wire solution.
Contact us today for a free quote and design consultation! Let our experts help you build the perfect connection.
