USB to UART cable Support +3.3V UART signals
|
Data Rates: |
9600~115200 byte |
USB Speed: |
Full Speed 480M |
|
USB Connector: |
Type A |
End Connect: |
4Pin SIL, 0.1” pitch |
|
Cable Length: |
1M |
Cable Detail: |
2725 28AWG/1Pairs+28AWG/2C OD:3.6 |
|
I/O Voltage: |
5V or 3.3V |
Max Power Output: |
+5V /75mA |
|
Internal IC: |
CH340 Serial |
Operating Temperature: |
-20℃ to +85℃ |
l Single-chip USB to Serial asynchronous data transfer interface.
l Fully Compliant with USB Specification v2.0 (Full-Speed).
l UHCI/OHCI (USB1.1), EHCI (USB 2.0) Host Controller Compatible.
l Integrated USB 1.1 Transceiver and 5V to 3.3V Regulator.
l Supports USB to RS232 Serial UART Interface.
– Full-duplex transmitter and receiver (TXD and RXD)
– 5, 6, 7 or 8 data bits
– Odd, Even, Mark, Space, or None parity mode
– One, one and a half, or two stop bits
– Parity error, frame error, and serial break detection
– An Independent power source for serial interface
l Extensive Flow Control Mechanism
– Adjustable high/low watermark level
– Automatic hardware flow control with CTS/RTS or DSR/DTR
– Automatic software flow control with XON/XOFF
– Inbound data buffer overflow detection
l Provides royalty-free USB to Virtual COM Port drivers for Windows, Linux
The TTL 232R 5V/3V3 is a USB to Serial (TTL level) converter cable which allows for a simple way to connect TTL interface units to USB. This version of CH340’s USB to TTL serial adapter cables has it’s I/O pins configured to operate at 5V or 3.3V levels.

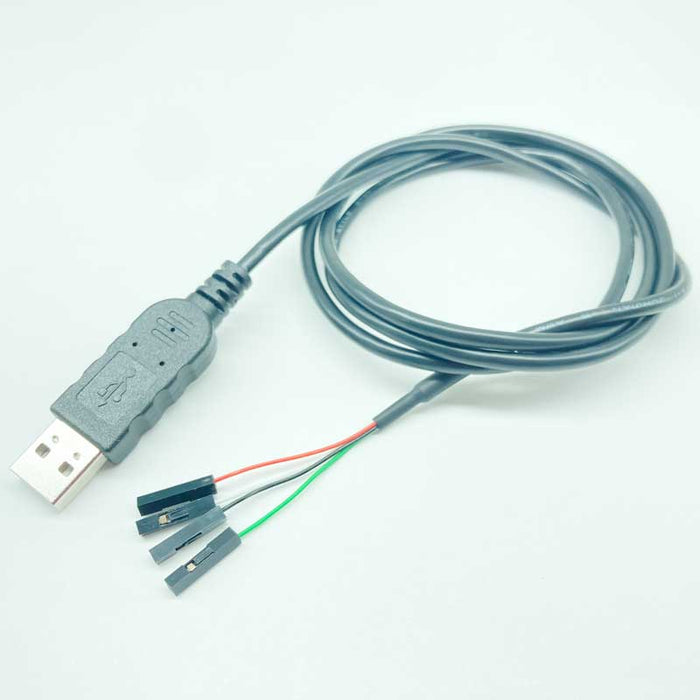

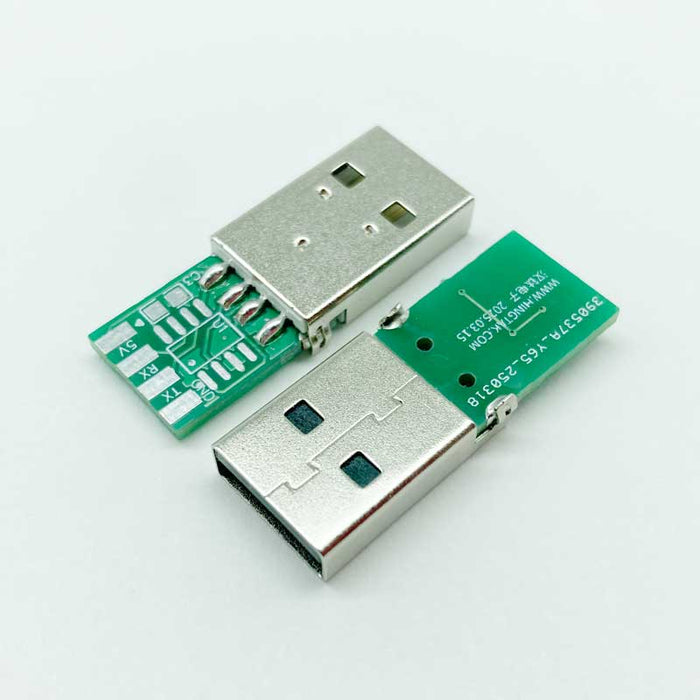

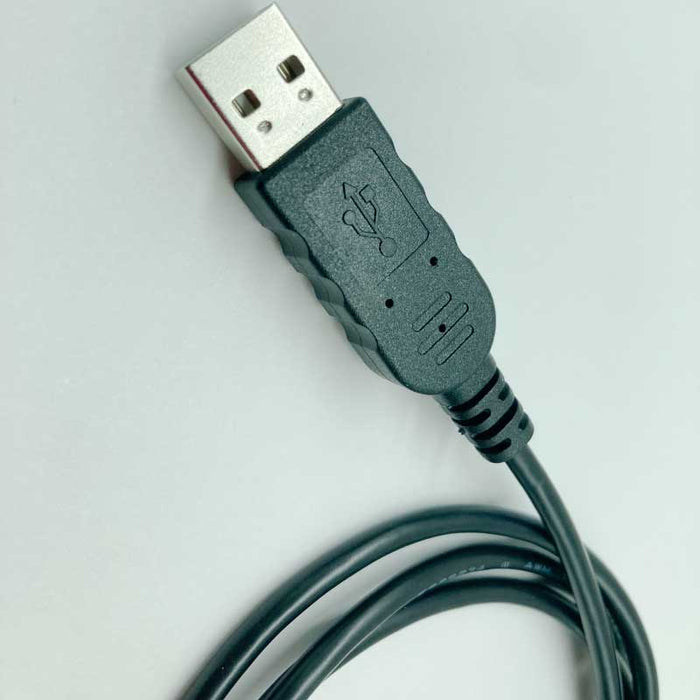

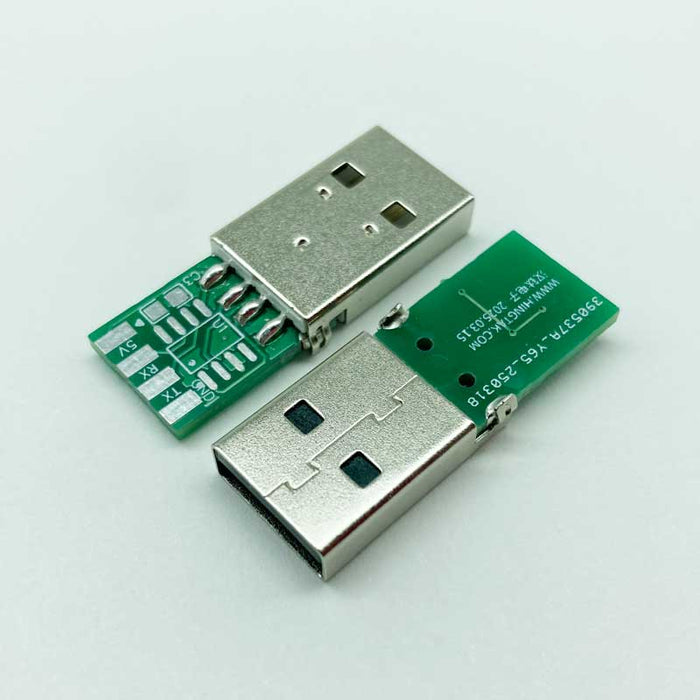

The TTL 232R 5V/3V3 uses a CH340 IC which is housed inside the USB ‘A’ connector, and is terminated at the end of a 1 meter cable with a 0.1″” pitch header socket which provided access to transmit (Tx), receive (Rx), These lines all operate at 5V/3.3V levels. Also brought out on the header are Vcc (5V), and GND.
The TTL 232R 5V/3V3 is fully RoHS compliant and is supplied loose – packed in an anti-static bag. ZIP-lock packing.
