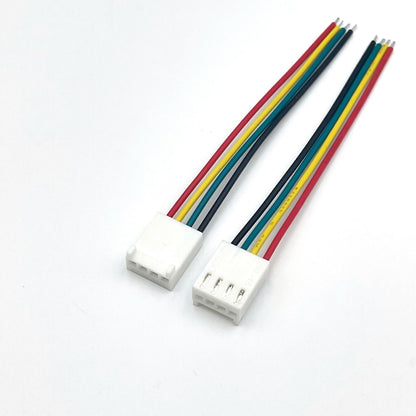

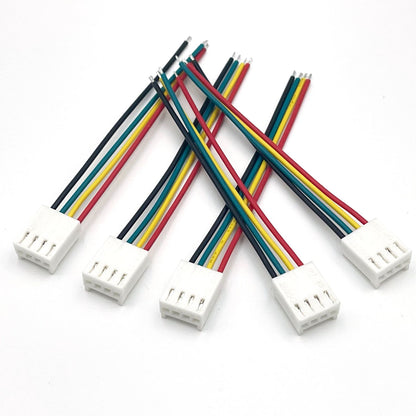

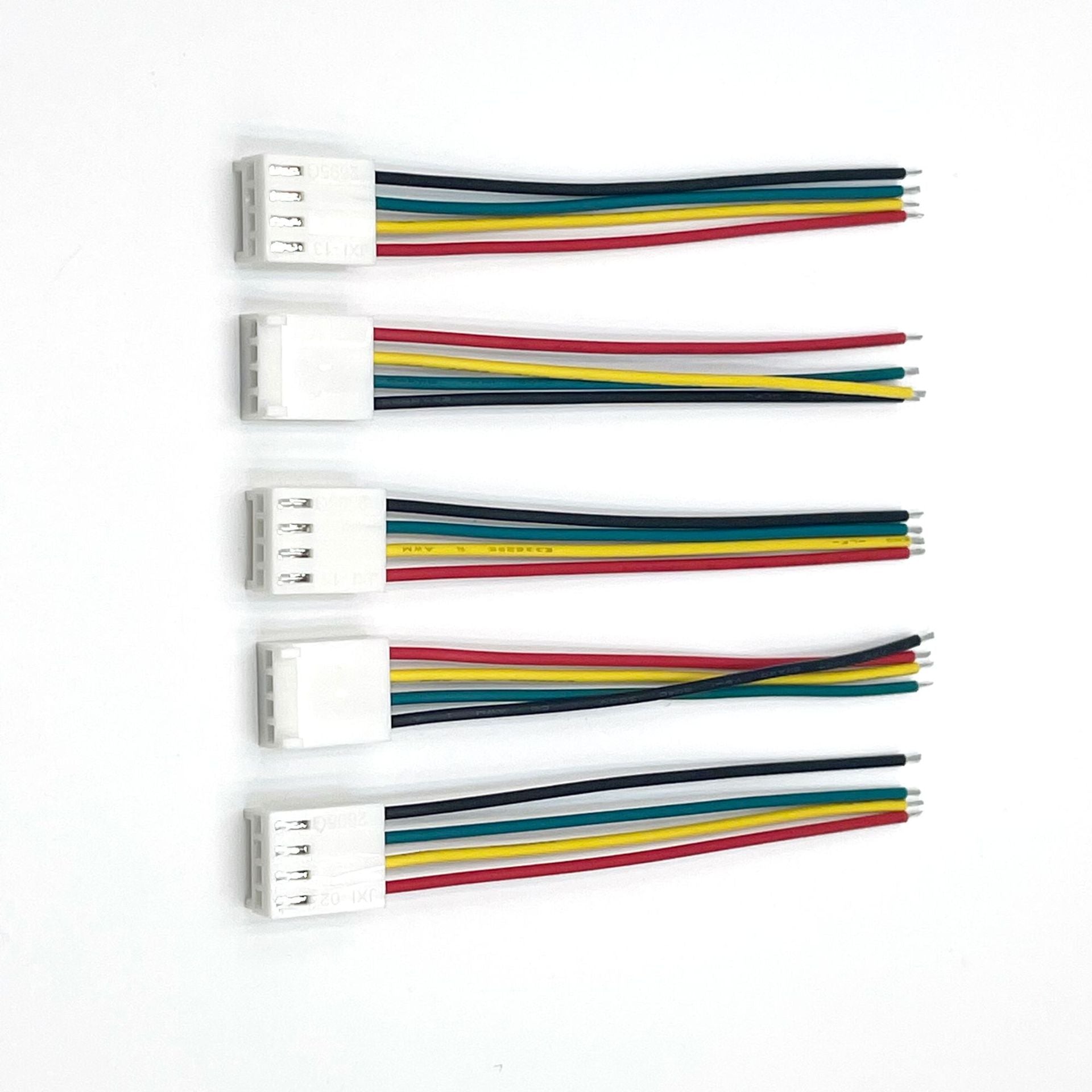

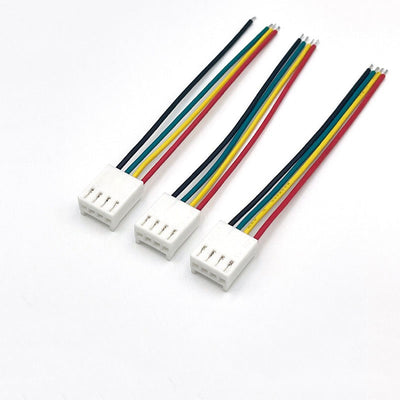

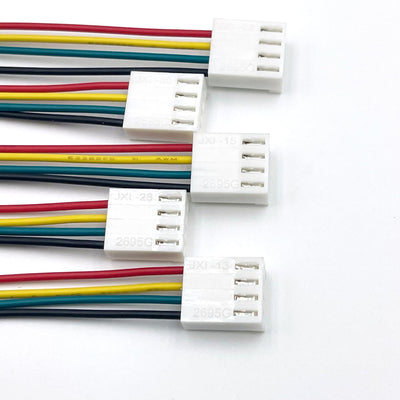

Molex 22012047 KK 254 Crimp Housing Friction Ramp 2510 2695 Series Wiring Harness Customized
The Molex 22012047 is a pre-wired, ready-to-use harness assembly designed for internal power distribution within electronic equipment and appliances. It features industry-standard Mini-Fit Jr. HTA (High-Temp Automotive) headers on both ends, providing a reliable and robust plug-and-play solution for connecting PCBs (Printed Circuit Boards) or other components requiring a 4-circuit power link.
Key Features
Circuit Size: 4 circuits (positions).
Connector Series: Mini-Fit Jr. HTA (High-Temp, High-Current).
Wire Gauge: 16 AWG, suitable for higher current applications.
Assembly Length: 300 mm (nominal).
Color Coded Wires: Pre-crimped wires with standard color coding for easy polarity identification and circuit tracing.
Fully Insulated Connectors: Both male and female connectors are fully shrouded for protection against mismating and finger-safe operation.
Positive Lock Latch: Integrated latching mechanism ensures a secure and vibration-resistant connection.
Pre-assembled: Factory-tested harness for guaranteed performance and reliability.
RoHS Compliant: Meets the Restriction of Hazardous Substances directive.
Technical Specifications
Attribute Specification
Molex Part Number 22012047
Number of Circuits 4
Connector Type (End 1) Mini-Fit Jr. Male Header (Wire-to-Board)
Connator Type (End 2) Mini-Fit Jr. Female Header (Wire-to-Board)
Contact Pitch 4.20 mm (0.165")
Current Rating Up to 9.5 A per circuit
Voltage Rating 300 V AC/DC
Wire Gauge 16 AWG
Cable Length 300 mm
Operating Temperature -40°C to +105°C (with selected terminals)
Housing Material Thermoplastic, UL 94 V-0 Rated
Termination Pre-crimped contacts on stranded tinned copper wire.
Applications
This harness is commonly used for power supply connections in a wide range of industries and applications, including:
Industrial Equipment: PLCs, Motor Drives, Power Supplies
Appliance: White Goods (e.g., Washing Machines, Dryers, Dishwashers)
Telecommunications: Server Power Backplanes, Networking Hardware
Consumer Electronics: Internal power distribution in large devices
Business Machines: Printers, Copiers
Ordering Information
Part Number: 22012047
Packaging: Typically supplied in bulk pack or reel.
Related Products
Receptacles: Mini-Fit Jr. Female Receptacles (e.g., 39-01-2040)
Headers: Mini-Fit Jr. Male Headers (e.g., 39-29-9048)
Terminals: Mini-Fit Jr. Crimp Terminals (e.g., 44476-3111)
Pairs well with
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
Molex 22012047 KK 254 Crimp Housing Friction Ramp 2510 2695 Series Wiring Harness Customized
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Category
Terminal wires are essential connecting components widely used in electronics, communications, automotive, and home appliance industries.
Customized Wire Harness
100% Raw Material Inspection → Precision Manufacturing → 3-Stage Quality Testing → Packaging & Delivery
Raw Material Inspection: Verify material specifications, insulation performance and environmental indicators.
Precision Manufacturing: Adopt automatic equipment to reduce manual errors and ensure consistent product dimensions.
3-Stage Quality Testing: Includes initial sample testing, in-process random inspection, and final finished product testing.
Packaging & Delivery: Anti-static packaging for electronic components; customized packaging solutions for bulk orders.
Our Advantages
🔍 Full Certifications
ISO/UL/ROHS/REACH compliant
🛠️ Customization Flexibility
Tailor length, terminal type, color & shielding
⚡ High Reliability
Anti-corrosion, vibration-resistant & stable signal transmission
⏱️ Fast Lead Time
Standard models in stock, custom orders in 7–10 days
FAQs
Please read our FAQs page to find out more.
Can you help to design?
Yes,we are an OEM/ODM company,we have been specializing in wire harness and cable since 2014.
Can you provide samples?
Yes,the sample is avaliable to provide for testing or checking quality before mass production.
If I don't have any drawings,can you still quote my products?
Yes,but we need you to provide information about the length and gauge of the wire,the part number of the connector,etc.
What are the common applications of terminal wires?
Terminal wires have extensive applications across multiple industries:
• Consumer electronics: Used in smartphones, laptops, TVs, and printers for internal component connections.
• Automotive industry: Applied in engine control units, lighting systems, and dashboard circuits.
• Industrial equipment: Utilized in PLCs, sensors, and motor control systems.
• Household appliances: Found in refrigerators, washing machines, and air conditioners.
